Connect a spell to Blueprint gameplay

Use an effect's Impact marker to apply damage once, then wait for its particles to finish. This tutorial follows the included timeline-spell project. Read Your first Blueprint and Using the VFX editor if the editors are new to you.

Run the example

Open examples/timeline-spell/Timeline Spell.epokproject and Play its startup scene, Combat.epokmap. The first spell casts automatically. The target starts at 100 HP and each Impact deals 25 damage.

Use your configured controller bindings in Game view. Cancelling before Impact leaves HP unchanged. See the example README for its files and command-line launch options.

Inspect the three parts

The graph determines when gameplay happens. The effect determines how the spell looks and when its named moments occur. The effect does not inspect arbitrary C++ memory or apply damage simply because particles overlap an object.

Follow the cast graph

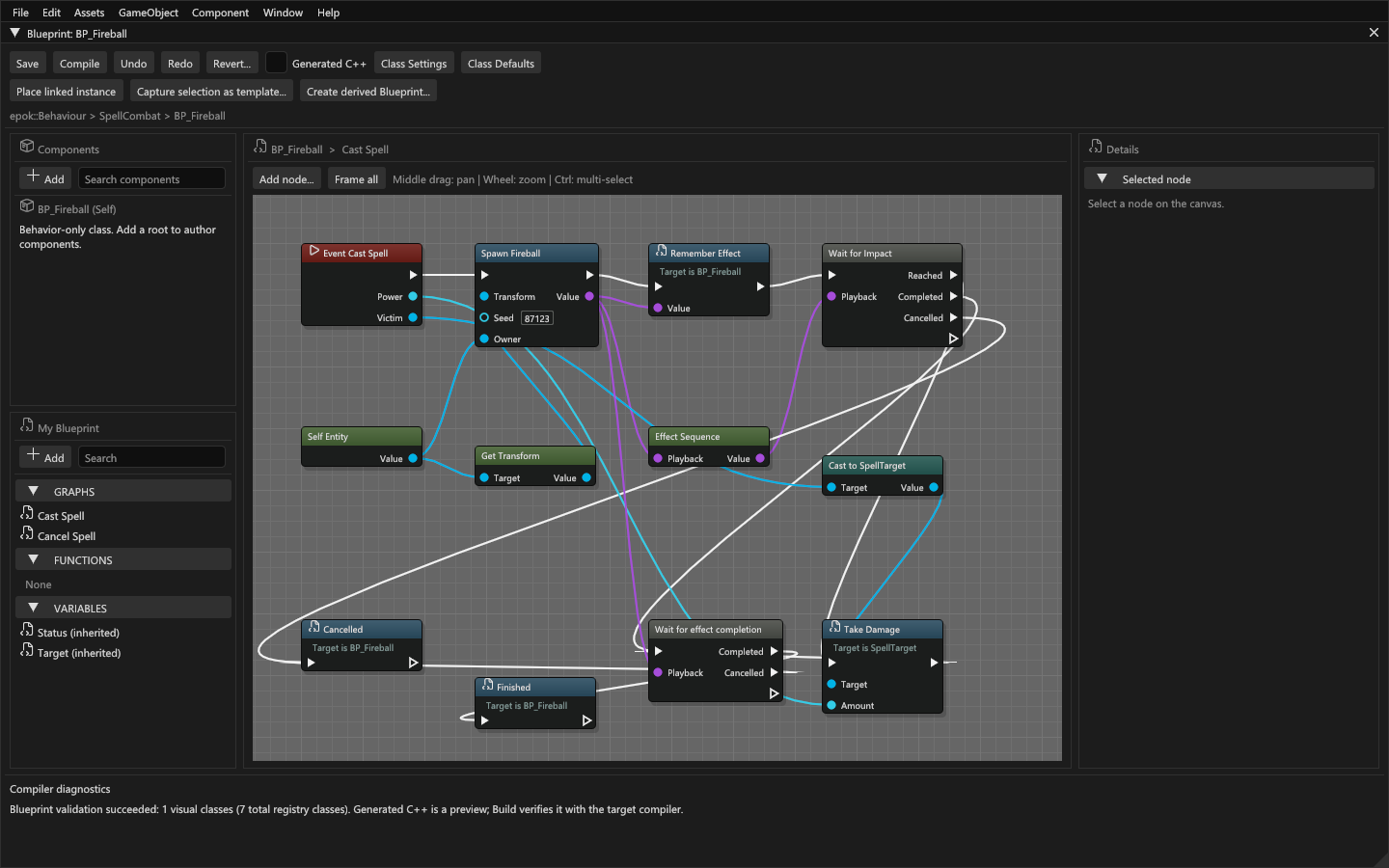

Open BP_Fireball.epokbp. Follow the execution wires in this order:

1. The cast event receives damage and a typed target. These values belong to this invocation and remain captured across its waits.
2. Effect / Spawn asset selects Fireball and creates a playback instance. Its Transform is in world space, zero seed uses the asset seed, and the owner controls activation and lifetime. Save the returned EffectHandle so the cancellation graph can stop this exact play.
3. Effect / Sequence handle gets the embedded sequence's SequenceHandle. Effect and sequence handles are different types; do not interchange them.
4. Wait for marker selects Fireball's embedded timeline and its Impact marker. Connect the sequence handle to the wait.
5. The Reached branch invokes damage on the captured target through a typed gameplay call. Keep damage on this branch, rather than on the wait's common Next output.
6. Wait for effect completion waits for the effect's bounded particle tail. Its successful outcome lets the spell report completion and become ready again.

The waits yield through the existing bounded continuation mechanism. They never spin or block a frame. Even an already available result resumes on a later tick. The original target stays captured: editing a field for the next cast cannot redirect a suspended Impact to another entity.

Handle every outcome

Next runs after the selected outcome branch. Do not put successful-hit logic there unless it is also intended for completion-without-hit and cancellation. If the consuming behaviour is destroyed or the scene is replaced, its continuation is cancelled without running an outcome branch on that destroyed consumer.

The cancellation graph stops the stored EffectHandle. Stopping before Impact prevents its damage branch; stopping after Impact does not undo damage already applied. Retrying a cast event replaces its pending continuation, but does not automatically stop an earlier directly spawned effect. Stop or otherwise own that earlier play explicitly before replacing it.

Bind your own scene targets

Direct asset nodes choose a source asset in the editor. Their external binding pins come from that asset's typed slots. Connect required pins to compatible EntityRefs; required null bindings fail compilation. Use an existing checked cast when a general entity reference needs a more specific class.

Slot names are labels; their persistent identities preserve connections through renaming or reordering. Removing a slot or changing its type can leave a stale connection that you must repair. Internal effect-layer slots are managed by the effect pool and are not scene entities.

Get Transform reads local placement. It can directly supply a root entity's world placement; a child with transformed parents needs a correctly composed world Transform. Make Transform provides an explicit transform. A spawned effect keeps its supplied placement; a component effect follows its anchor. Use component Play for an attached aura, and Spawn asset for an independent burst.

Repeated markers and sustained effects

Use Subscribe to marker when a looping aura must respond to future crossings. Its Next output continues immediately, while the captured listener branch runs on subsequent crossings and re-arms. It does not replay crossings before registration. Return ends that listener; stopping the playback cancels its producer.

Keep the listener small. Its branch may yield, but it shares the existing eight latent slots with other suspended work. For a single projectile impact, Wait for marker is simpler and avoids a persistent subscription. See Timeline reference for backlog and cancellation details.

Modify and verify

1. Move the existing Impact marker later in the effect editor. Retain its identity and place it inside the effect duration. Save and compile again.
2. Play: damage should occur at the new marker time, not at a hardcoded Delay.
3. Cancel before Impact: HP must remain unchanged. Cast again and let it finish: HP must drop once and the effect must clean up.
4. Pause during the cast, then resume. There must be no duplicated hit.
5. Reload the scene during the cast. The old continuation must not damage the new scene's target, even if it occupies a reused runtime slot.
6. Test multiple effects with native counters before increasing layer or particle counts. Then rebuild the standalone export from its generated build script.

If the graph cannot find the marker, check the selected embedded timeline and marker identity instead of creating a second marker with the same label. If a build is stale, repair current sources and rebuild; do not use an old executable as evidence for your edited graph. Troubleshooting collects the common recovery steps.
